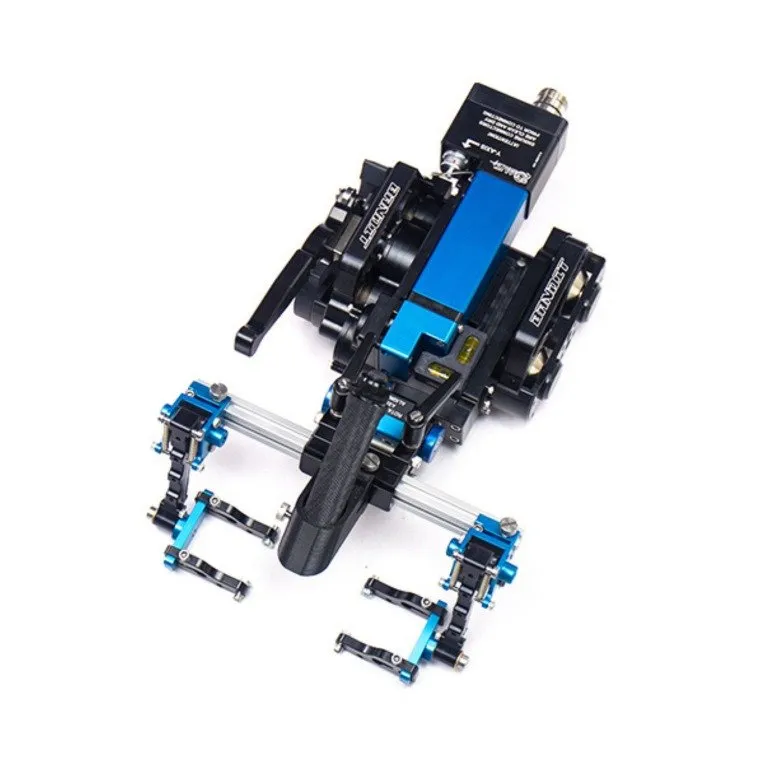

BANDIT Automated Ultrasonic Scanner (Corrosion Mapping Crawler)
BANDIT is a lightweight, compact, and low-clearance automated scanner purpose-built for fast and efficient corrosion mapping. Fueled by innovations designed for quick deployment, BANDIT allows completely remote operations from the ground, instantly eliminating the need for costly scaffolding or high-risk rope access. Proven in the harshest fields for over 10 years, it stands out as a rugged, highly productive, and easy-to-maintain 2-axis motorized crawler. With its intuitive 1-man operation design, BANDIT ensures your non-destructive testing (NDT) jobs never get stuck while providing an instant return on investment.
Online Catalog ↗ Not sure this is the right one? Find it in 3 questions →Compact & Ergonomic Design: Low-clearance profile featuring an adjustable quick-release clamp system, enabling intuitive and rapid one-man setup.
Versatile Scanning Capabilities: Effortlessly supports circumferential OD scanning starting from 2 inches (5 cm) and axial scanning from 6 inches (15 cm).
High-Speed 2-Axis Motion: Joystick-controlled system delivering exceptional scanning speeds up to 150 mm/s (6″/s) on the X-axis and 762 mm/s (30″/s) on the Y-axis.
Universal Traceability: Features highly precise encoding that is seamlessly compatible with most flaw detectors, meeting the strict traceability requirements of industry standards.
Core Package Includes: 12-inch arm, 2-axis motor controller, probe gimbal, Windows-compatible software, and a 100 ft (30 m) umbilical with irrigation and 6 UT lines.

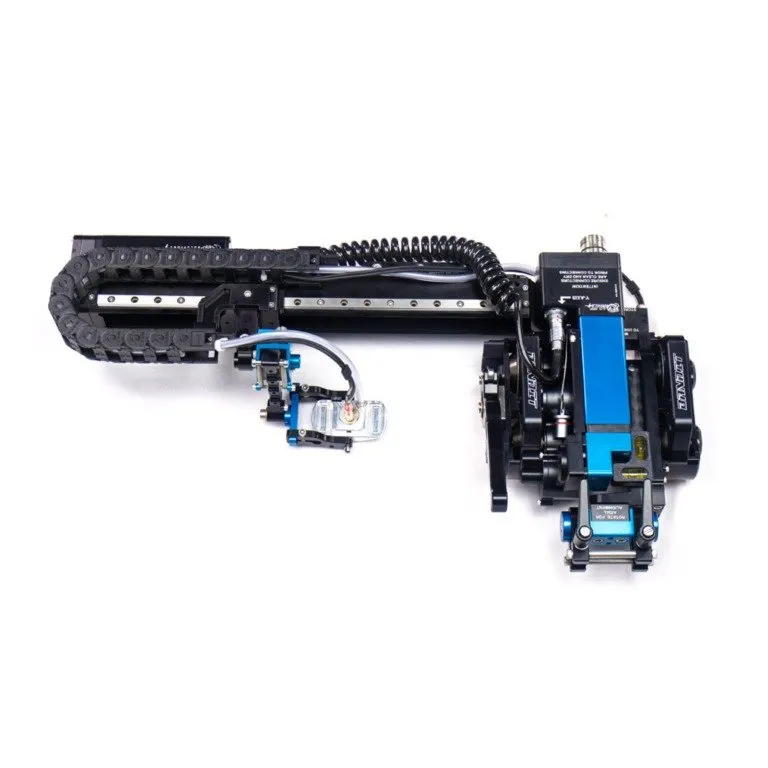

Optional Enhancements: 20″, 24″, or 36″ extension arms (AS-Arm), multi-probe kit for TOFD / Phased Array inspections, rechargeable battery packs, and custom-length umbilicals.
Technical Specifications:
-
Weight: 10.5 lbs (4.8 kg)
-
Dimensions: 12 × 7 × 4 inches (30 × 18 × 10 cm)
-
Environmental Rating: IP65 Water Resistant
Explore Our Other Scanner Solutions
Beyond VENOM, we offer a wide range of NDT scanners tailored to the specific requirements and budget of your industrial inspection projects. Browse our categories to choose the right equipment for your project:
Automated Scanners
Explore our brushless motorized, remote-controlled, and CNC-compatible robotic NDT crawler solutions for projects requiring the highest precision, repeatability, and speed. Ideal for large-area corrosion mapping and rapid weld inspections.
Manual Scanners
If you are looking for high flexibility, rapid deployment, and portability in confined spaces, check out our ergonomically designed manual (hand-held) scanners for pipelines, elbows, and weld seams.
Get in touch with our expert NDT engineers today to determine the most suitable scanner configuration for your projects, get a quote, or request a live demo.
-
