BAQ alphaROCK Combined UCI & Leeb Hardness Tester

BAQ alphaROCK – Key Features

Two Testing Methods in One Device: Unites non-destructive UCI testing for fine structures with the Leeb rebound method for heavy castings in a single portable instrument.
Automatic Probe Recognition: Automatically identifies connected UCI probes or Leeb impact devices, ensuring effortless operation and seamless workflow switching.
Robust Metal Casing & Color Display: Features an industrial-grade metal housing designed for harsh environments and a high-resolution 3.5 inch color TFT-LCD screen (640×480 pixels).
Universal Hardness Scale Conversions: Offers full conversion across Vickers (HV), Brinell (HB), Rockwell (HRC, HRB, HRA, HRD, HRE, HRF), Super Rockwell (HR45N), Knoop (HK), Leeb (HL), Shore (HS), and Tensile Strength (N/mm²).
Massive Memory & USB-C Connectivity: Stores over 1 million data sets (including date, time, evaluation status) and features a modern USB-C port for rapid PC data export.
Long-Lasting Battery: Equipped with an internal 6800 mAh Lithium-Ion battery providing approximately 12 hours of continuous operation.

Application Areas & Examples

The BAQ alphaROCK is the ultimate versatile hardness testing solution for every material type across modern industry:

Heat-Treated & Nitrided Components (UCI Method): Non-destructive testing of induction-hardened gears, shafts, injection molds, and coated surfaces.
Weld Seam & HAZ Inspections (UCI Method): Precise point-by-point hardness mapping of Heat-Affected Zones (HAZ) in pipelines and pressure vessels.
Heavy Castings & Forgings (Leeb Method): Rapid hardness evaluation of large cast iron blocks, forged steel, and massive machinery frames.
Thin-Walled Parts & Sheet Metals (UCI Method): Accurate testing of lightweight or thin components without bending or backing mass.
Universal Quality Control: Ideal for incoming inspection, production line audits, and field service tasks across all metallurgical sectors.

Technical Specifications

Measurement Methods: UCI (ASTM A1038 / DIN 50159) & Leeb (ASTM A956 / DIN EN ISO 16859)

UCI Hardness Scales: HV, HB, HRC, HRB, HRA, HRD, HRE, HRF, HR45N, HK, N/mm²

Leeb Hardness Scales: HRC, HB, HV, HRB, HL, HS, N/mm²

Compatible UCI Probes: 3N, 10N, 20N, 30N, 49N, or 98N manual and motorized probes

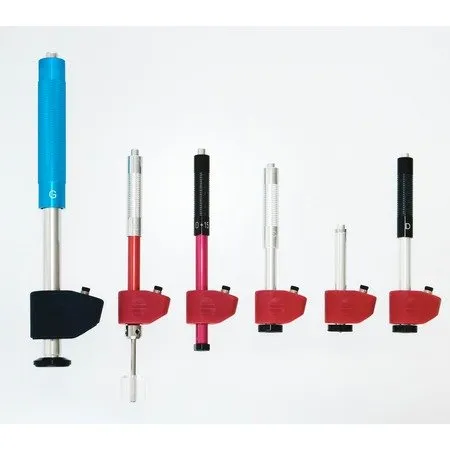

Compatible Leeb Impact Devices: D, DC, C, D+15, DL, G options

Display: 3.5 inch TFT-LCD color display (640×480 resolution)

Data Storage: > 1,000,000 readings with date, time, and statistics

Connectivity: USB-C (charging and data export)

Power Supply: Built-in Li-Ion Battery (6800 mAh, ~12h operating time)

Dimensions & Weight: 154 x 84 x 23 mm / 430 g

Origin: Made in Germany (BAQ GmbH)
