S2G2-800 – Eddy Current Array (ECA)
S2G2-800 is an advanced Eddy Current Array (ECA) inspection system designed for high-resolution detection of surface and near-surface defects. With its multi-channel architecture and high-speed data acquisition, it enables fast, accurate, and visual inspection across a wide range of applications.
Online Catalog ↗ Not sure this is the right one? Find it in 3 questions →S2G2-800 utilizes multi-element array probes to scan large areas efficiently while generating detailed inspection data:
- Eddy Current Array (ECA): Wide-area scanning with real-time C-scan imaging
- Multi-technology platform: Supports ECT, RFT, NFT, and MFL
- Versatile use: Suitable for both surface inspection and tube inspection applications
This structure significantly improves inspection speed and defect visualization compared to conventional eddy current systems.
ECA Inspection Capabilities
- High-resolution surface crack detection
- Corrosion mapping and wall loss evaluation
- Longitudinal and transverse crack detection
- Weld inspection (surface-breaking defects)
- Large-area fast scanning
- Real-time C-scan visualization
Technical Specifications
- Frequency Range: 20 Hz – 2 MHz
-
Channel Capacity:
- 128 channels (standard)
- Expandable to 256 / 512 channels
- Probe Inputs: 8
- Multi-frequency: Up to 5 simultaneous frequencies
- Data Rate: 100,000 data points/sec/channel
- Resolution: 32-bit
- Connectivity: Gigabit Ethernet
- Protection Rating: IP55
- Weight: ~4.5 – 4.75 kg
Key Advantages of ECA Technology
- Wide area coverage in a single pass
- Much faster than conventional eddy current testing
- Visual inspection with C-scan imaging
- High sensitivity for surface defects
- Easy integration with scanners and automation systems
Key Features
- 128–512 channel ECA capability for high-resolution inspection
- Embedded multiplexer for optimized signal quality
- High signal-to-noise ratio (SNR) for detecting small defects

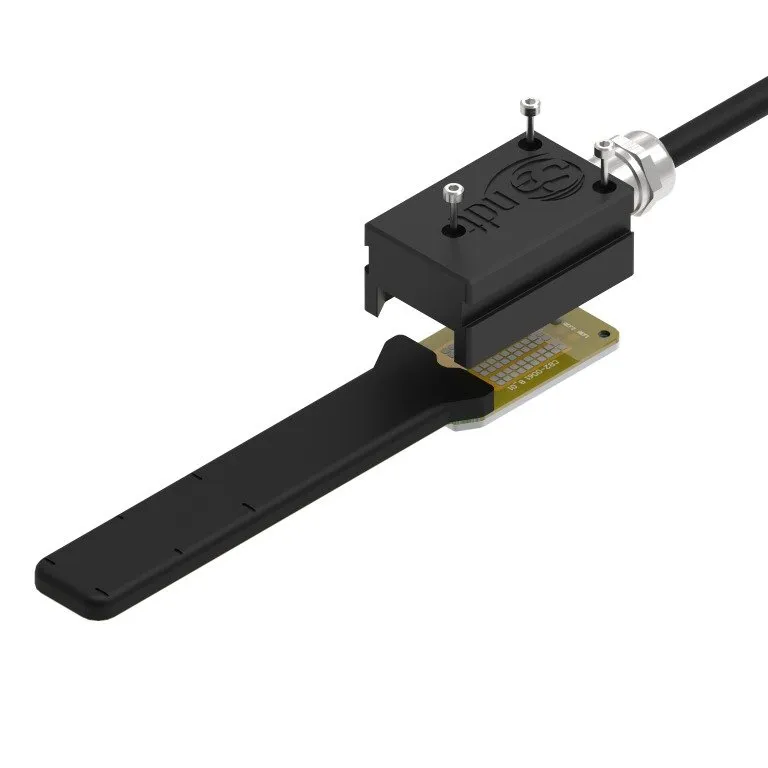

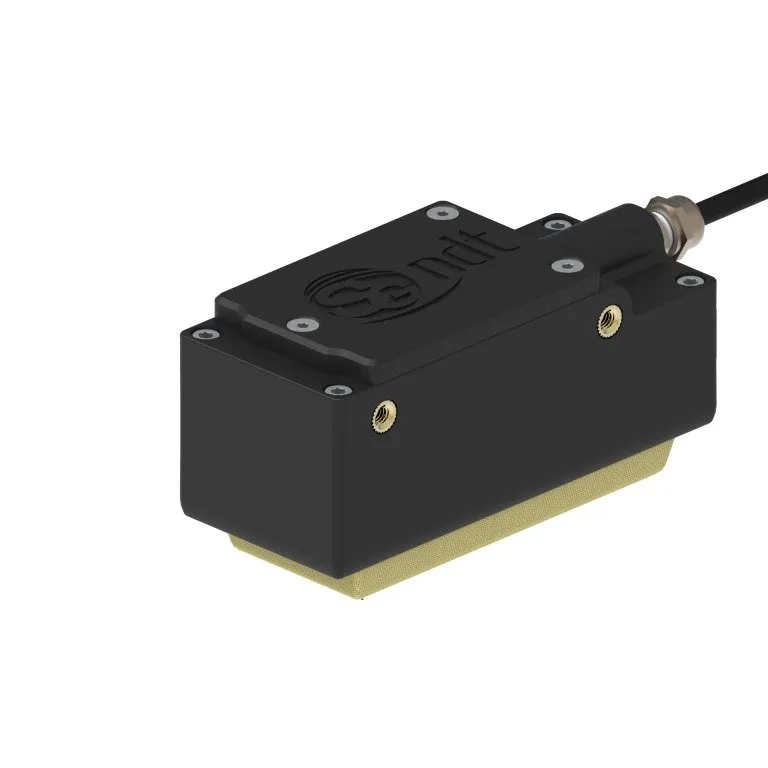

- Compatible with flexible, rigid, and cushion array probes
- Integrated motor control for scanner systems
- Multi-technology platform in a single device
Applications
- Weld inspection
- Corrosion mapping (tanks, pipes, surfaces)
- Aerospace and defense components
- Oil & gas and petrochemical plants
- Railway (rails, axles, wheels)
- Manufacturing and surface quality control
