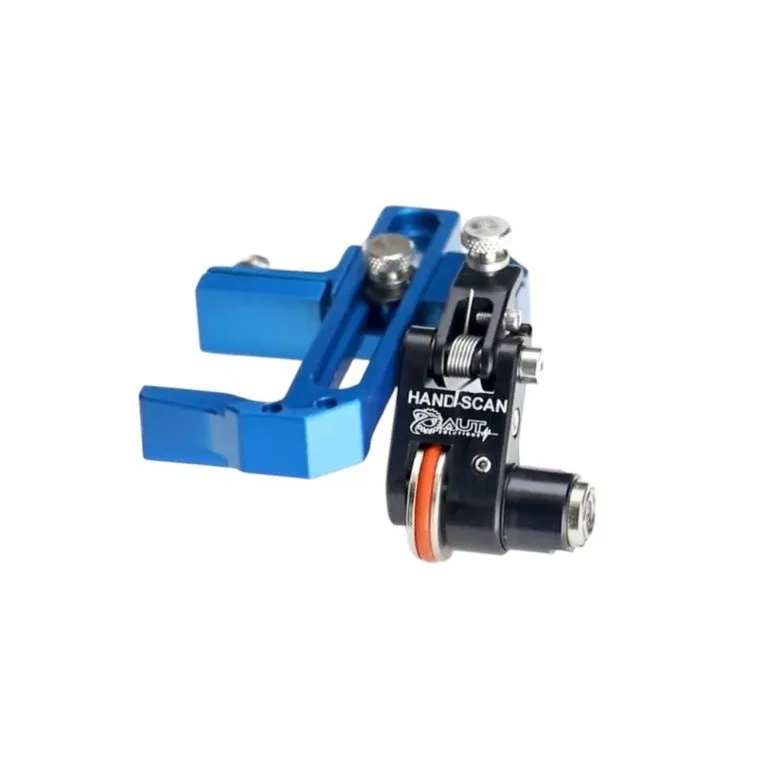

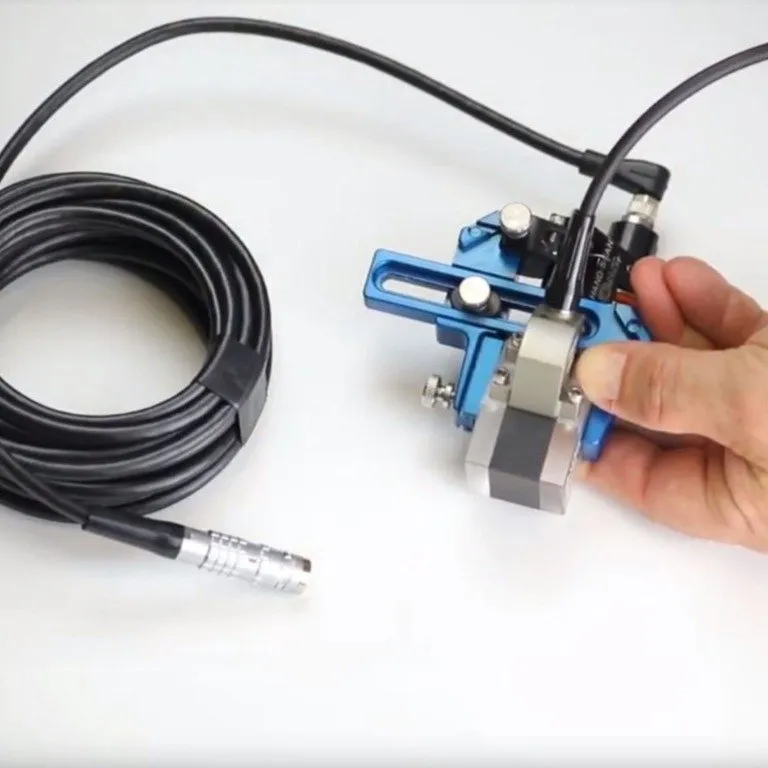

HANDSCAN Compact Manual Magnetic Scanner (Portable NDT Scanner)
HANDSCAN is an ultra-compact, 1-axis magnetic manual scanner designed for rapid, reliable, and high-precision non-destructive testing (NDT) on carbon steel pipes, pressure vessels, and flat plates. It excels in restricted access areas and complex geometries where larger scanners cannot reach. Featuring an ergonomic, palm-sized body and strong magnetic wheels, it adheres securely to ferromagnetic surfaces for slip-free, stable tracking. HANDSCAN digitalizes manual inspections, ensuring excellent spatial data traceability and precise signal collection at every step.
Online Catalog ↗ Not sure this is the right one? Find it in 3 questions →Ultra-Compact & Ergonomic Frame: Palm-sized lightweight design engineered for effortless scanning in congested areas, tight pipe racks, and complex structural joints.
High-Force Magnetic Wheel: Integrated strong magnetic wheel prevents slipping and enables stable horizontal, vertical, and overhead scanning on carbon steel assets.
High-Precision 1-Axis Encoder: Rugged, fully sealed encoder integrated directly into the wheel mechanism to guarantee flawless spatial data synchronization under harsh field conditions.

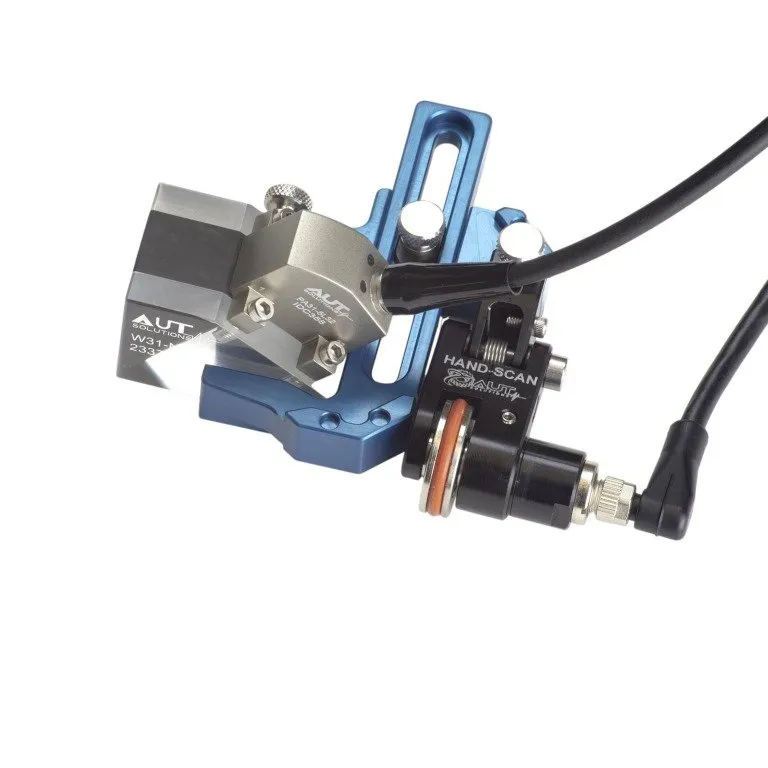

Multi-Technology Compatibility: Spring-loaded probe holder (gimbal) fully compatible with Phased Array UT (PAUT), TOFD, and Conventional UT probes.
Tool-Free Setup: Enables quick on-the-fly adjustments of probe position, spacing, and spring tension without requiring specialized tools.
Technical Specifications:
-
Scan Type: 1-Axis encoded manual scanning.
-
Application Range: Ferromagnetic pipes (from 4″ OD and above), flat plates, tank walls, and curved geometries.
-
Materials: High-grade anodized aluminum and corrosion-resistant stainless steel hardware.
Explore Our Other Scanner Solutions
Beyond HANDSCAN, we offer a wide range of NDT scanners tailored to the specific requirements and budget of your industrial inspection projects. Browse our categories to choose the right equipment for your project:
Automated Scanners
Explore our brushless motorized, remote-controlled, and CNC-compatible robotic NDT crawler solutions for projects requiring the highest precision, repeatability, and speed. Ideal for large-area corrosion mapping and rapid weld inspections.
Manual Scanners
If you are looking for high flexibility, rapid deployment, and portability in confined spaces, check out our ergonomically designed manual (hand-held) scanners for pipelines, elbows, and weld seams.
Get in touch with our expert NDT engineers today to determine the most suitable scanner configuration for your projects, get a quote, or request a live demo.
-
