REVOLVER DUAL Manual DUAL-Probe Orbital Pipe Scanner (Manual NDT Scanner)

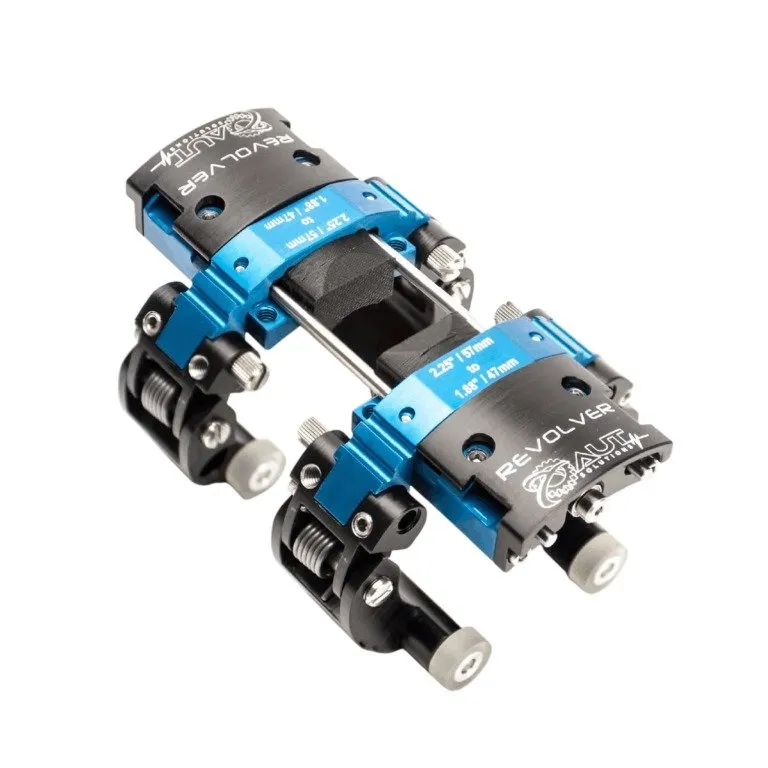

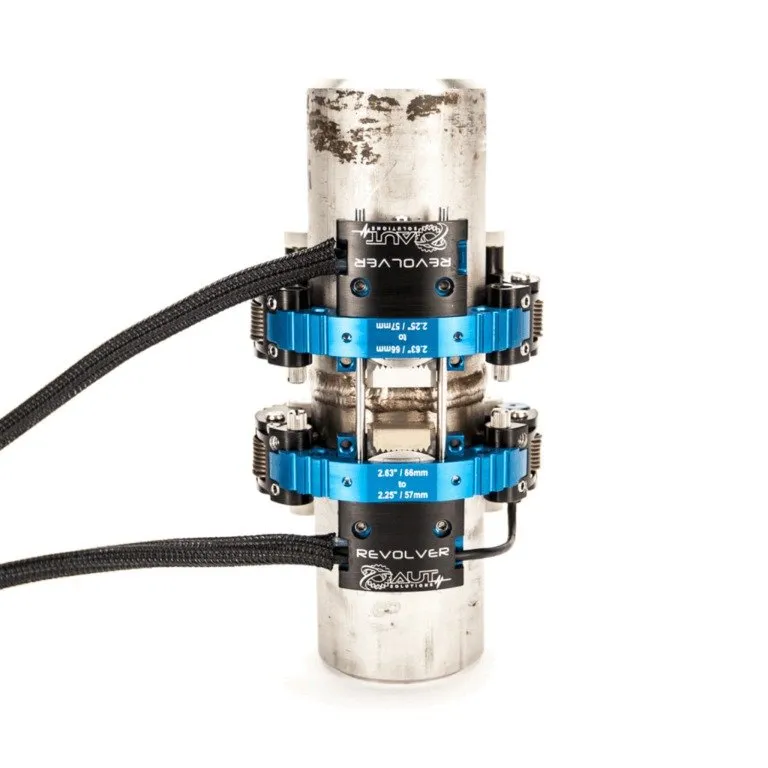

REVOLVER DUAL is an extremely compact and ergonomic manual orbital scanner specifically designed for the circumferential weld inspection of small-to-medium diameter pipes and tubes. Featuring dual-probe capability, it allows operators to perform simultaneous bilateral inspections of welds using Phased Array (PAUT) or TOFD in a single pass. Its ultra-low profile and slim design make it the ideal choice for inspecting tightly packed pipe racks, boiler tubes, and other confined spaces with minimal clearance. Equipped with precise guiding mechanics and a high-resolution encoder, it converts manual tracking into highly accurate, digital, and reliable NDT data.
Online Catalog ↗ Not sure this is the right one? Find it in 3 questions →Dual-Probe Bilateral Scanning: Features flexible scanner arms that simultaneously hold two Phased Array (PAUT) or TOFD probes to inspect both sides of the weld joint in a single scan.
Low-Profile Architecture: Specifically designed to glide effortlessly through extremely tight clearances and obstructions often found in boiler and pipe rack environments.
Versatile Diameter Range: Highly adaptable modular chain or ring configuration suitable for small tubes starting from 0.84″ (21 mm) OD up to medium-sized pipes.
High-Resolution Waterproof Encoder: Rugged, fully sealed wheel encoder that ensures perfect spatial data synchronization and robust traceability under harsh field conditions.
Tool-Free On-Site Adjustments: Allows operators to adjust probe separation, alignment, and spring tension quickly without the need for specialized tools.
Technical Specifications:
-
Diameter Range: Typically from 0.84″ (21 mm) to 4.5″ (114 mm) OD and above.
-
Inspection Technologies: Fully compatible with Phased Array UT (PAUT), TOFD, and Conventional UT.
-
Build Quality: Built using lightweight aerospace-grade anodized aluminum and corrosion-resistant stainless steel.
