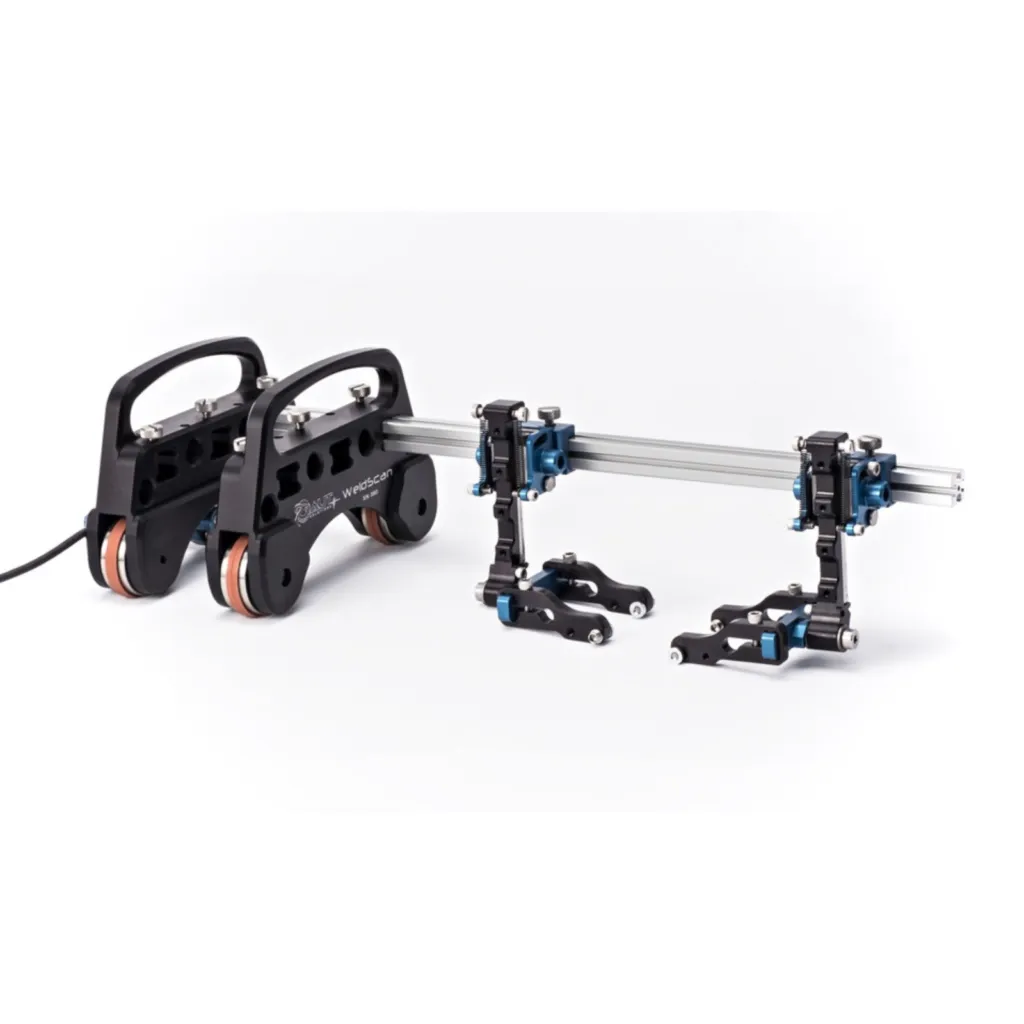

WELDSCAN Modular Manual Weld Scanner (PAUT & TOFD NDT Scanner)
WELDSCAN is a high-performance, highly versatile, and modular manual scanner designed for the non-destructive testing (NDT) of longitudinal and circumferential weld seams on flat plates, pressure vessels, and pipelines. Capable of performing Phased Array (PAUT) and TOFD inspections simultaneously, WELDSCAN features an ergonomic design that allows operators to carry out extensive field inspections with minimal fatigue and maximum precision. Its modular architecture enables rapid, tool-free adaptation to varying pipe diameters, wall thicknesses, and weld configurations.

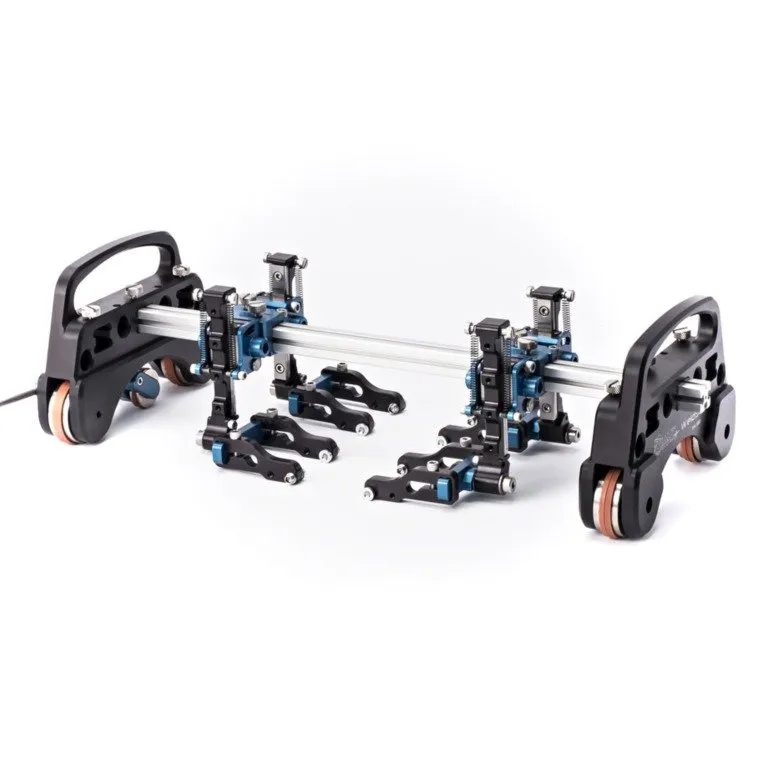

Online Catalog ↗ Not sure this is the right one? Find it in 3 questions →Multi-Probe Compatibility: Modular scanner frame that holds up to 4 probes simultaneously (such as 2 PAUT and 2 TOFD probes) to ensure complete, single-pass weld coverage.
Longitudinal & Circumferential Scanning: Adjustable wheel axes allow seamless and stable transition between longitudinal and circumferential tracking on curved pipes and vessels.
Magnetic & Rubber Wheel Options: Strong integrated magnetic wheels for slip-free tracking on carbon steel assets, or high-friction rubber wheels for non-magnetic surfaces.
High-Resolution Sealed Encoder: Equipped with a rugged, waterproof wheel encoder that guarantees flawless spatial data acquisition and strict compliance with global traceability standards.
Tool-Free On-Site Adjustments: Allows operators to adjust probe separation, spring tension, and gimbal alignment manually on-site without the need for specialized tools.
Technical Specifications:
-
Diameter Range: Adaptable for inspections on pipes starting from 2″ (50 mm) OD up to flat surfaces.
-
Inspection Technologies: Fully compatible with Phased Array UT (PAUT), TOFD, and Conventional UT.
-
Build Quality: Constructed using lightweight, high-durability anodized aluminum and marine-grade stainless steel components.
