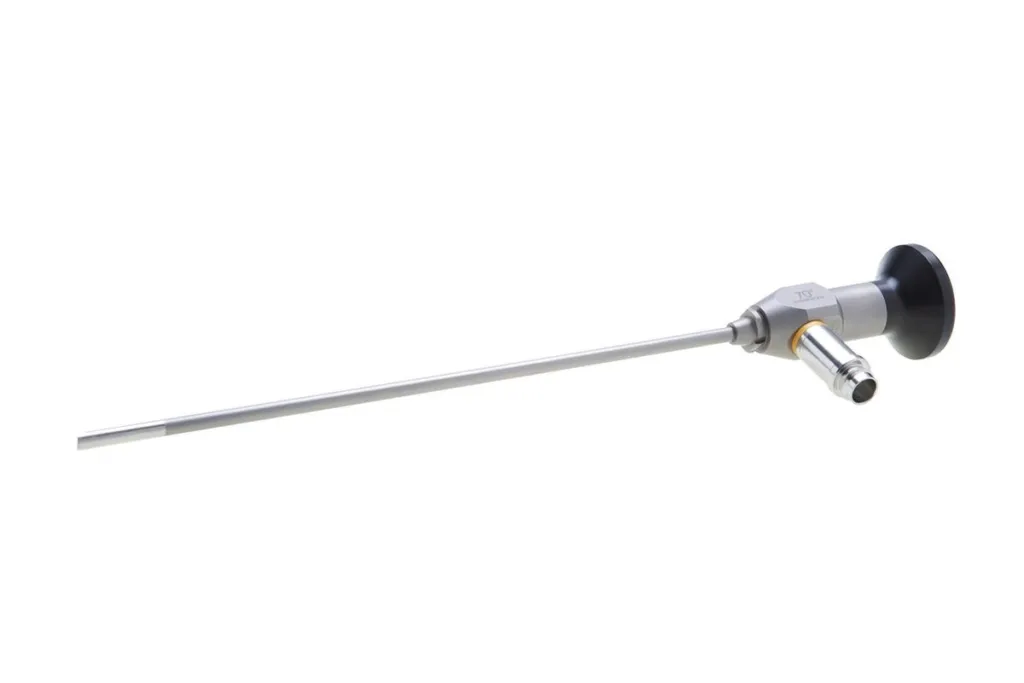

Industrial Boroscope (Borescope / RVI Camera)

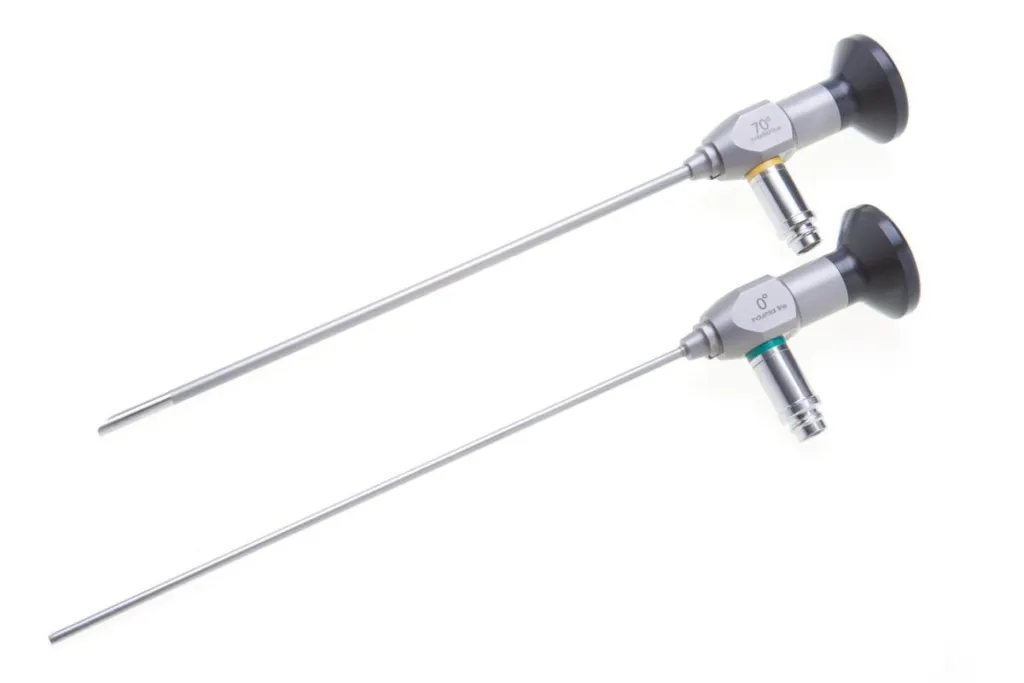

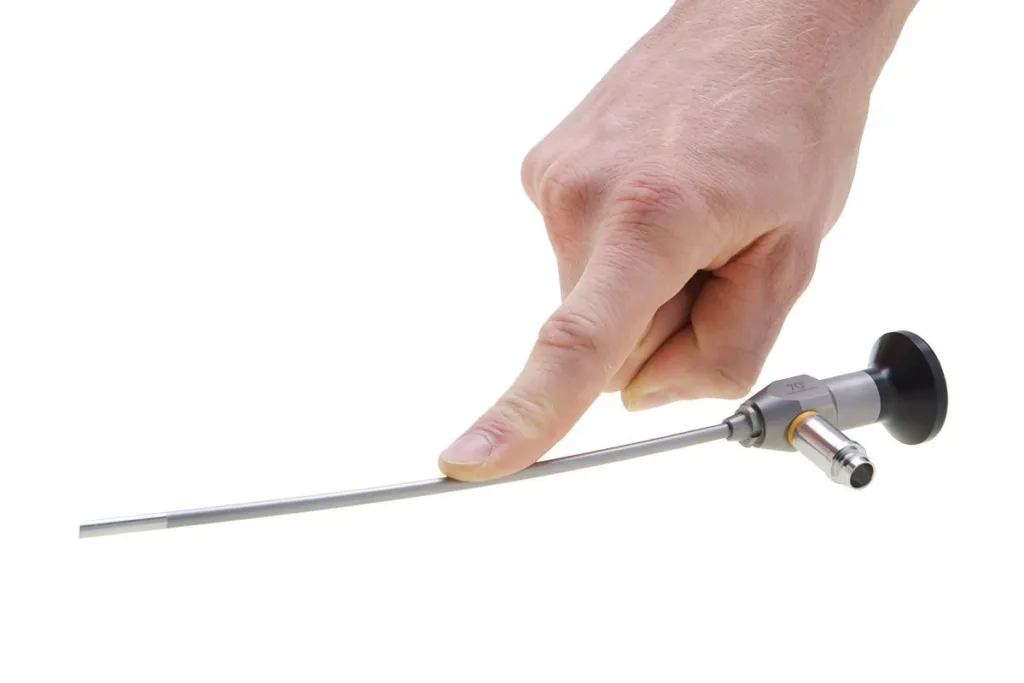

Industrial Line The IT Concepts industrialline rigid and semi flexible Borescopes are intended for fast inspections of easy to reach areas in the industrial field, combining easy handling, high image quality, a durable design and a very attractive price in a unique way. The rigid and the semi flexible Borescopes have a Field of View of 80°.
Online Catalog ↗ Not sure this is the right one? Find it in 3 questions →Industrial Line
The IT Concepts industrialline rigid and semi flexible Borescopes are intended for fast inspections of easy to reach areas in the industrial field, combining easy handling, high image quality, a durable design and a very attractive price in a unique way. The rigid and the semi flexible Borescopes have a Field of View of 80°.

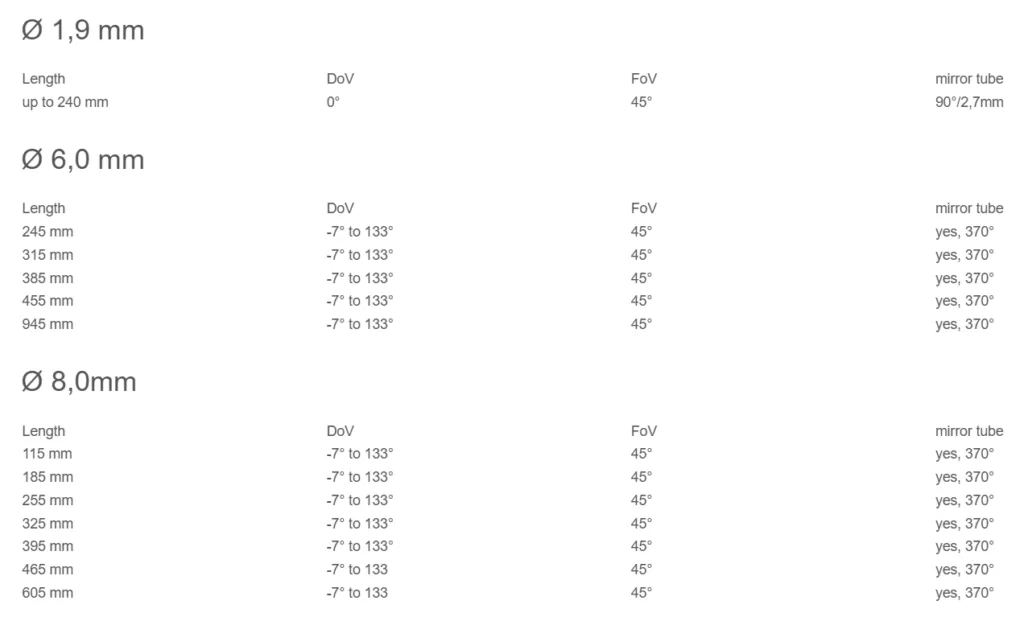

Ø 1,9 mm
| Length | DoV | FoV | mirror tube |
| up to 240 mm | 0° | 45° | 90°/2,7mm |
Ø 6,0 mm
| Length | DoV | FoV | mirror tube |
| 245 mm | -7° to 133° | 45° | yes, 370° |
| 315 mm | -7° to 133° | 45° | yes, 370° |
| 385 mm | -7° to 133° | 45° | yes, 370° |
| 455 mm | -7° to 133° | 45° | yes, 370° |
| 945 mm | -7° to 133° | 45° | yes, 370° |
Ø 8,0mm
| Length | DoV | FoV | mirror tube |
| 115 mm | -7° to 133° | 45° | yes, 370° |
| 185 mm | -7° to 133° | 45° | yes, 370° |
| 255 mm | -7° to 133° | 45° | yes, 370° |
| 325 mm | -7° to 133° | 45° | yes, 370° |
| 395 mm | -7° to 133° | 45° | yes, 370° |
| 465 mm | -7° to 133 | 45° | yes, 370° |
| 605 mm | -7° to 133 | 45° | yes, 370° |
Ø 9,0 mm
| Length | DoV | FoV | mirror tube |
| 205 mm | -7° to 133° | 45° | yes, 370° |
| 305 mm | -7° to 133° | 45° | yes, 370° |
| 405 mm | -7° to 133° | 45° | yes, 370° |
| 505 mm | -7° to 133° | 45° | yes, 370° |
| 605 mm | -7° to 133° | 45° | yes, 370° |
| 705 mm | -7° to 133° | 45° | yes, 370° |
