ACS A1212 MASTER Lightweight Ultrasonic Flaw Detector

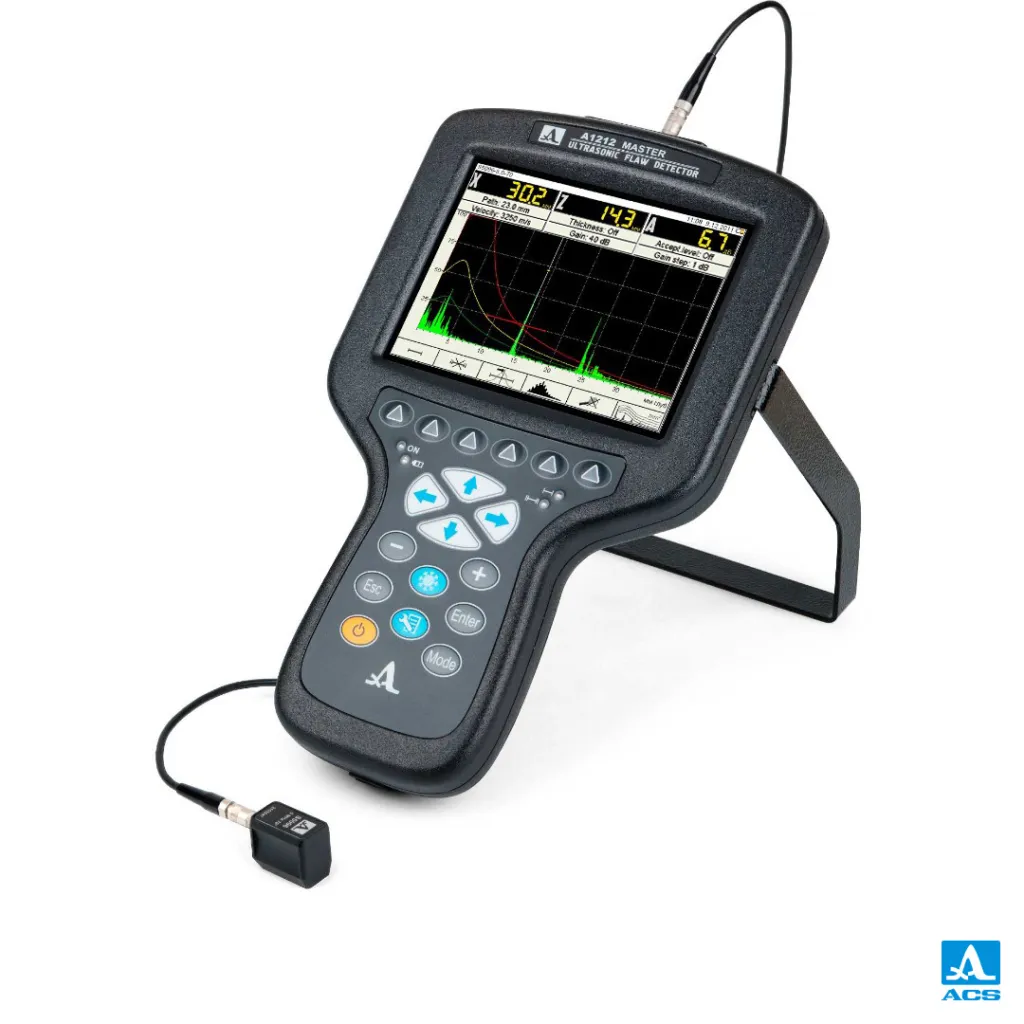

The ACS A1212 MASTER is a portable, general-purpose ultrasonic flaw detector with all the functions of a modern instrument in a compact housing. It supports standard and special ultrasonic methods with high throughput and accuracy, can be held in one hand and suits hard-to-reach and elevated locations.

What it does for your operation

• Evaluation to standards: DAC curves and DGS diagrams show acceptance, reporting and examination levels; equivalent flaw area is calculated automatically.
• Consistent results: 32-point digital TCG makes equal reflectors at different depths appear at equal height.
• Documented inspection: voice notes are added to saved images with a Bluetooth headset.
• Built for the field: shockproof housing, protective cover with sun hood and a mounting pad for hands-free work.

Technical specifications

• Max. tested thickness (steel, echo): 3,000 mm
• Operating frequency: 0.5 – 15 MHz
• Velocity range: 1,000 – 14,999 m/s
• Gain: 0 – 100 dB
• Thickness accuracy (straight probe): ±(0.01D + 0.2) mm
• Display: Colour TFT, 640 × 480
• Battery: 11.1 V, at least 8 h
• Operating temperature: -30 … +55 °C
• Size / weight: 260 × 156 × 43 mm, 800 g

Applications

• Weld joint inspection
• Corrosion, cracks and internal stratifications
• Locating and sizing flaws in metal and plastic parts
• Thickness measurement

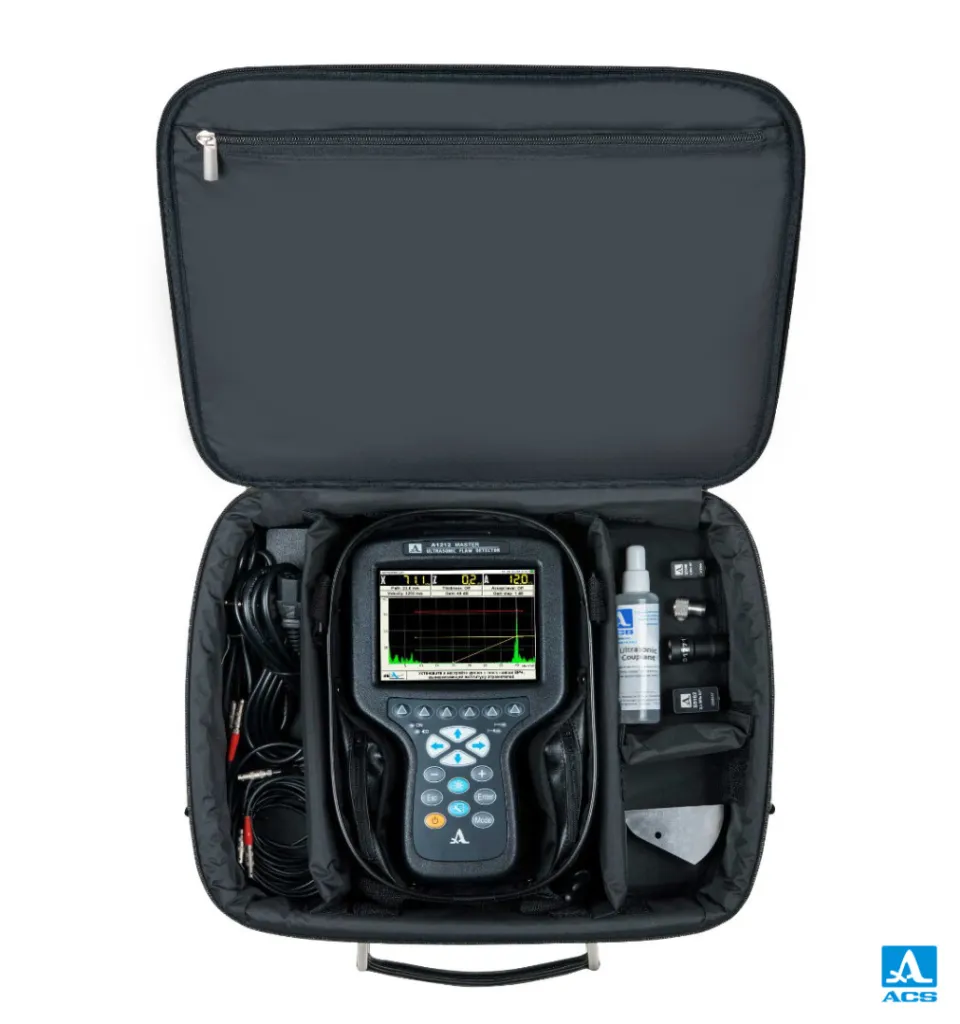

Delivery set

A1212 MASTER unit, D1771 and S3568 straight probes, S5182 and S5096 angle probes, single and double LEMO 00 cables, adapter, USB cable, V2/25 calibration block, soft cover and bag.

See our ultrasonic flaw detectors page for similar instruments. For quotations, demonstrations and training on ACS instruments in Turkey, contact NEXSEN.
