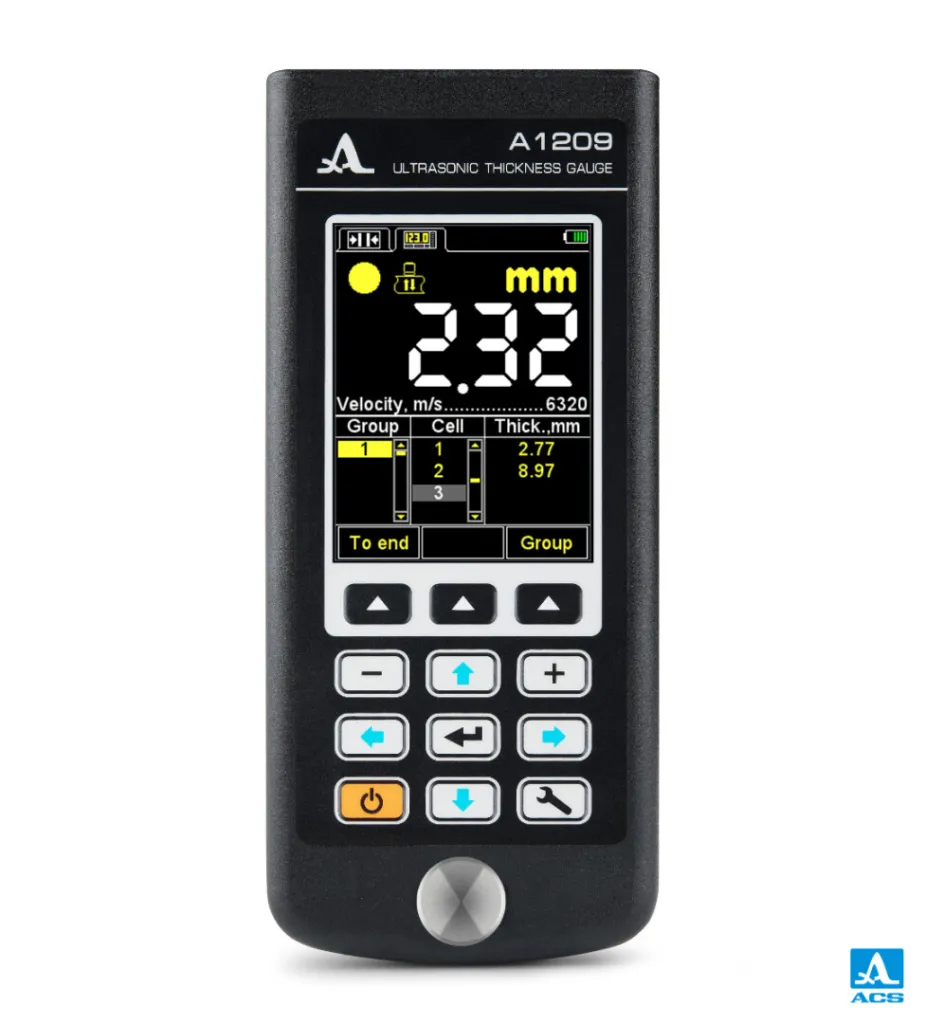

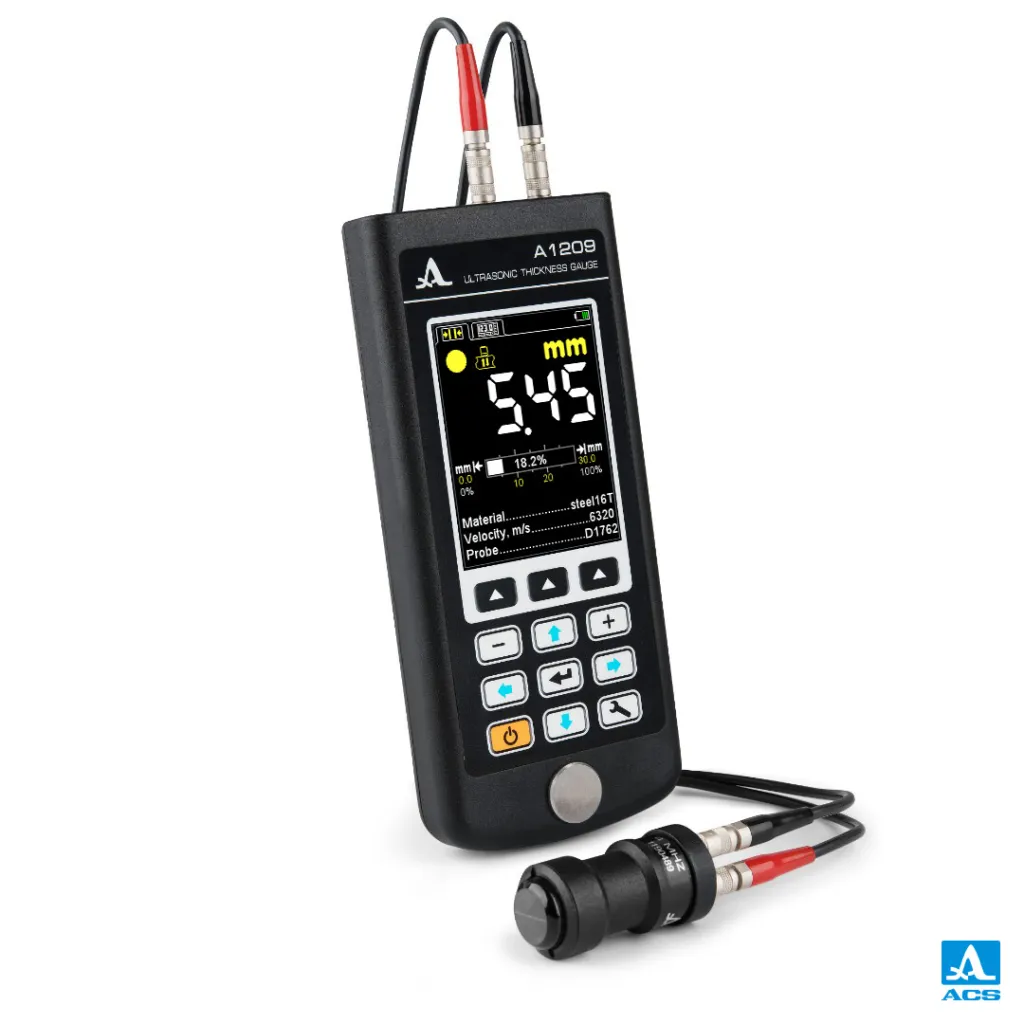

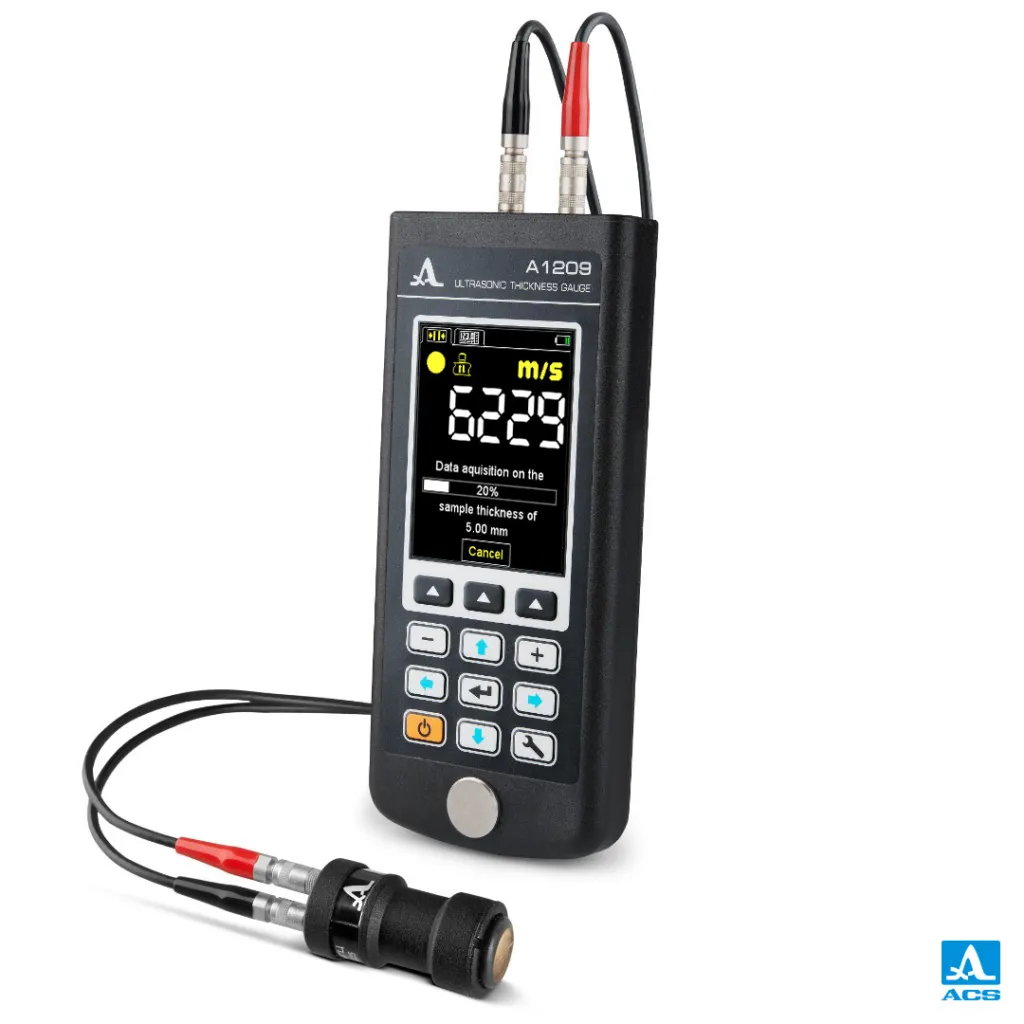

ACS A1209 Ultrasonic Thickness Gauge (with Memory)

The ACS A1209 is a universal ultrasonic thickness gauge with a large, high-contrast display, several measuring modes and built-in memory. Its patented dynamic threshold adapts automatically to surface curvature and roughness, so it measures corroded, small-radius surfaces as well as flat, smooth ones without extra adjustment.

What it does for your operation

• Operator-independent results: automatic surface adaptation gives different operators consistent readings at the same point.
• Records and reporting: built-in memory stores readings, making maintenance and audit reports easier.
• Measurement on hot lines: optional high-temperature probe for surfaces from -20 to 250 °C (300 °C for up to 6 seconds).
• Wide probe compatibility: works with all 4–10 MHz dual-crystal probes.

Technical specifications

• Measuring range (steel): 0.7 – 300 mm (D1771 4 MHz)
• Resolution: 0.01 mm (to 99.99 mm), 0.1 mm (100–300 mm)
• Basic accuracy: ±(0.01X + 0.05) mm (3–99.99 mm)
• Minimum curvature radius: 10 mm
• Velocity range: 500 – 19,999 m/s
• Display: TFT
• Battery life: 9 h (built-in Li-Pol)
• Operating temperature: -20 … +50 °C
• Size / weight: 161 × 70 × 24 mm, 210 g

Applications

• Corrosion and wall thickness of pipes, boilers and pressure vessels
• Rough surfaces up to Rz 160
• Internal pitting larger than 4 mm²
• Thin-walled pipes (with the D2763 probe) and plastic parts

Delivery set

A1209 unit, D1771 4 MHz probe, double LEMO 00 cable (1.2 m), 220 V–USB adapter, USB cable, soft cover and case.

See our ultrasonic thickness gauges page for similar instruments. For quotations, demonstrations and training on ACS instruments in Turkey, contact NEXSEN.
